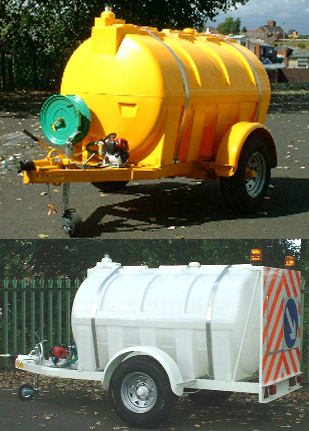

2250LITRE (500 GALLON) HIGHWAY FLOWER WATERING BOWSER
Ref: BOB2250-1
CHASSIS Constructed from 100 x 50 R.S.C. fully welded with an
'A' frame drawbar,finish painted.
.
AXLE/SUSPENSION Avonride rubber torsion beam axle fitted with
300 x 60 auto reverse brakes. 5 stud 6½" pcd hubs.
WHEELS/TYRES 2 no. 750 x 16 x 12 ply commercial van tyres on
5 stud 6 ½" Pcd rims.
COUPLING Knott 3000kg auto reverse coupling fitted with 40mm eye, break away cable and parking brake lever.
TANK Cylindrical in section moulded from polyethylene & fitted with a 4" hinged cover & 2" filler.Tank secured to chassis with 2 stainless steel straps.1 rear tap.
PUMP 1" Honda petrol engine driven pump c/w 50ft of ½" hose on rewind hose reel, & spray nozzle.
ANCILLARY EQUIPMENT Steel mudguards, front telescopic jockey wheel,lighting board.
OPTIONS Rear chevron board with direction arrow & flashing beacons.
Alternative pumps & hose reels on request
FINISH Tank in yellow polyethylene ,other colours on request.
Chassis painted.
DIMENSIONS Approximately :
Width 1.879m (6'2") Gross weight 3000kg
Length 3.581m(11' 10")
Height 1.854m(6'1") Unladen weight 640kg
|
