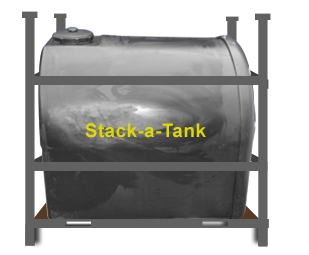

Stack-a-Tanks

Ref: Stack1

Pre Product: Rainwater Tanks
Next Product: Car Valeting Water Tanks

Length = 120mm
Height = 130mm
Width = 110mm


Ref: BOB1125-3

Pre Product: Rainwater Tanks
Next Product: Car Valeting Water Tanks

TANK Elliptical in section, moulded from PLP 330/7A602 Blue polyethylene.
Approved for Drinking Water. Fitted with an outer lockable 18" diameter lid,
covering an inner sealed & vented lid. 2" Male hydrant quick release fill
coupling fitted under outer lid. Internal Anti Surge baffle.
2 rear lockable brass draw off taps, 2" lockable drain ball valve in base of Tank.
Tank secured to frame by 2 no. stainless steel securing straps.
Secretary of State approved under regulation 31a &
British Standard BS 6920:2000

FRAME 4 Legged Pallet Type frame constructed from 50 x 50 R.H.S. section.
2 No. Pressed steel fork truck channels fitted under base of tank frame.
4 No. 70mm Square pallet feet fitted to base of upright legs for locating frames.
4 No. Built in 50mmdiameter lifting eyes welded to uprights.
All framework fully hot dipped galvanised to British Satndards

DIMENSIONS Approximately:
Length 1828mm(6'0") Gross Weight 1316kg approx.
Width: 1537mm (5'1/2") widest point
Height: 1524mm (5' 0") Unladen Weight 180kg approx
