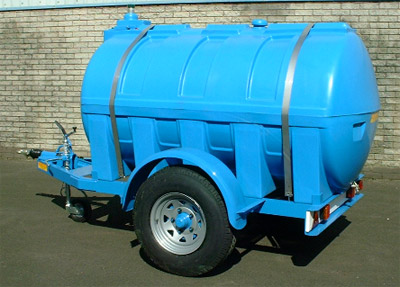

CHASSIS Constructed from 4" x 2" RSC fully welded with front standing
plate and 'A' frame drawbar.
AXLE/SUSPENSION Single Avonride torsion beam axle fitted with 300 x 60 Knott
Auto Reverse brakes on 5 stud 6.1/2" pcd hubs, rated at 3000kg.
WHEELS & TYRES 2 No. 750 x 16 x 12 ply radial tyres on 5 stud 6.1/2" pcd rims.
COUPLING Knott 3000kg capacity posibrake over run auto reverse c/w
Breakaway cable, spring assisted handbrake lever, fitted with
40mm Eye as standard or optional 50mm Ball.
ANCILLARY EQUIPMENT Steel Mudguards, telescopic front jockey wheel, full road lighting
c/w with 7 pin plug.
TANK Constructed from translucent heavy duty polyethylene with a
capacity of 2250 litres. 2" filler cap & chain, vent, & rear draw off tap. Yellow or Green tank as standard, or Blue Drinking Water tank.
PUMP Optional
FINISH Chassis Primer and two top coats in British Standard colour.
DIMENSIONS Approximately:
Width 1.879mm (74") Gross Weight 2900kg
Length 3.581mm (141")
Height 1.854mm (73") Unladen Weight 600kg
